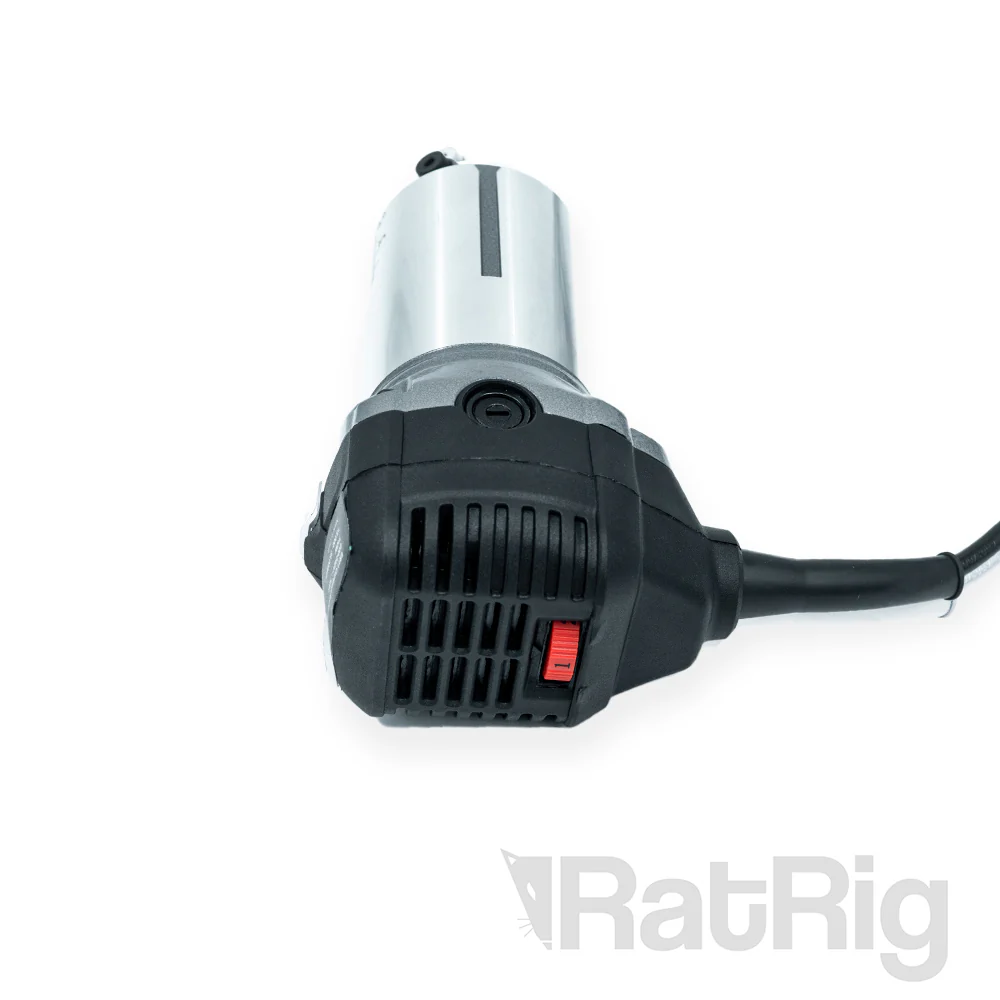

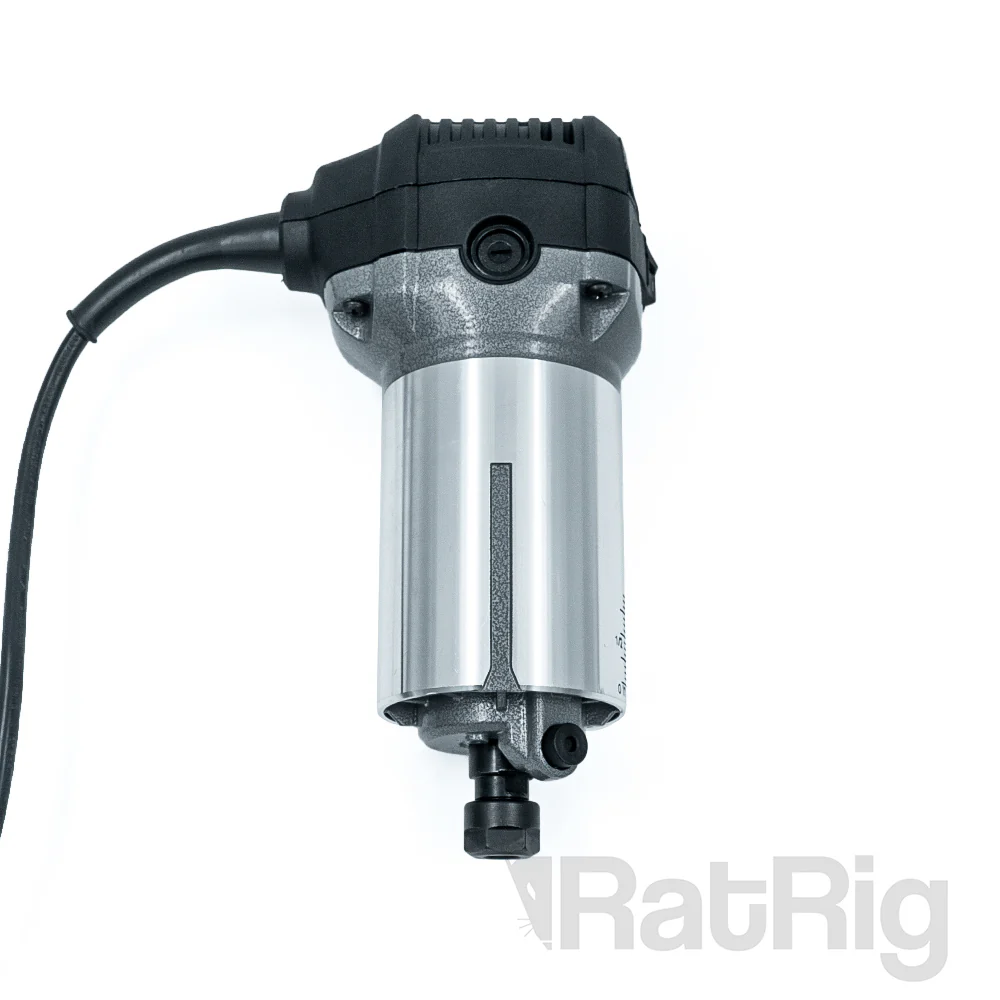

The Rat Rig ER11 Router Tool is designed as a low-cost alternative to a spindle for a CNC Machine. This router incorporates useful features, including a powerful 710W motor, ESC-Constant Speed control system, 6 Speed control dial, and high-quality NSK bearings for smooth operation and low runout. It is easy to use, affordable, and produces precise, quality cuts.

Built-in ESC-Constant Speed control system
Maintaining a constant speed is crucial for achieving precision in CNC machining. It's essential to be aware of and control the RPM (revolutions per minute) to ensure consistent performance. The Rat Rig ER11 Router is designed with built-in ESC-Constant Speed control system, utilizing electronics to make sure that the shaft rotates at the correct RPM, regardless of the load on the endmill. This feature contributes to reliable and accurate machining results.

Features:

Powerful 710w motor
ESC-Constant Speed Control System (maintains a consistent speed regardless of the resistance)
6 Speed dial for fine-tuning RPM
ER11 Collet with wide range of bits support (Includes ER11 Collets 1/4", 3mm, 6mm)
0.5 to 7mm (0.020 - 0.276") clamping range
High quality NSK bearings
Low runout

Speed Wheel RPM

**Speed Wheel RPM**
Number	RPM
1	13000
2	17000
3	22000
4	29000
5	31000
6	33000

Specifications:

Collet System: ER11
Power: 710W
Voltage: 220 - 240V 50Hz
Plug Type: EU
RPM (no load speed): 13000 - 33000
Power Cord Length: 2.5m
Body Diameter (Mounting): 65mm
Weight 1.51kg

Included:

1x Rat Rig Router
1x ER11 Type A Nut
3x ER11 Collets 1/4", 3mm, 6mm
1x Nut Wrench
1x Set of replacement Carbon Brushes
1x User Manual
