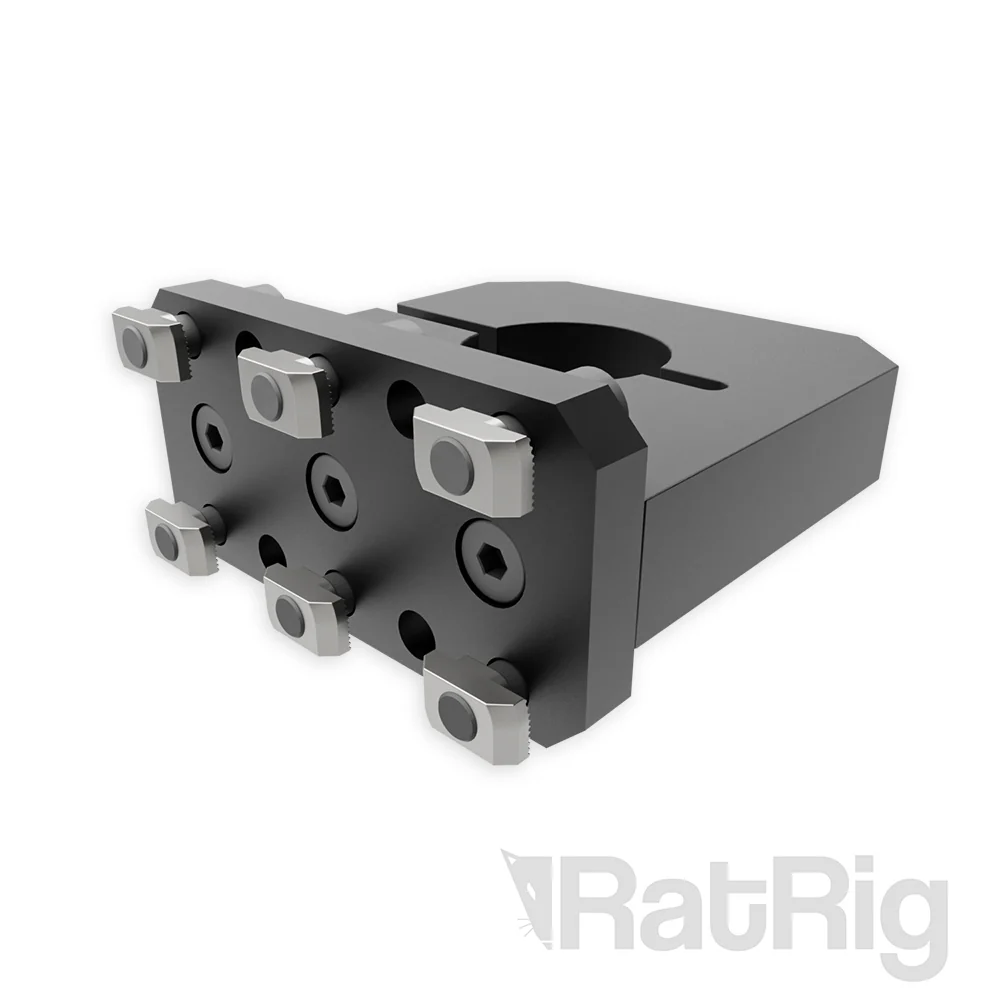

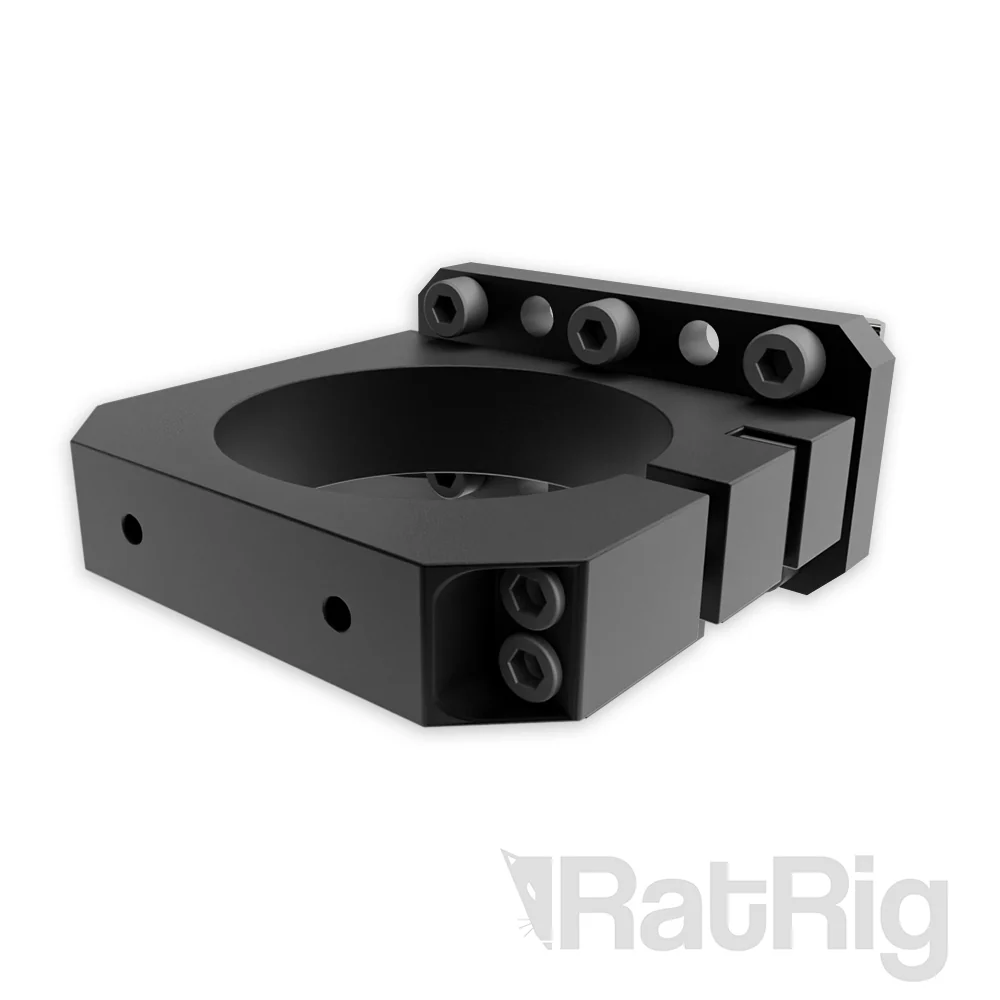

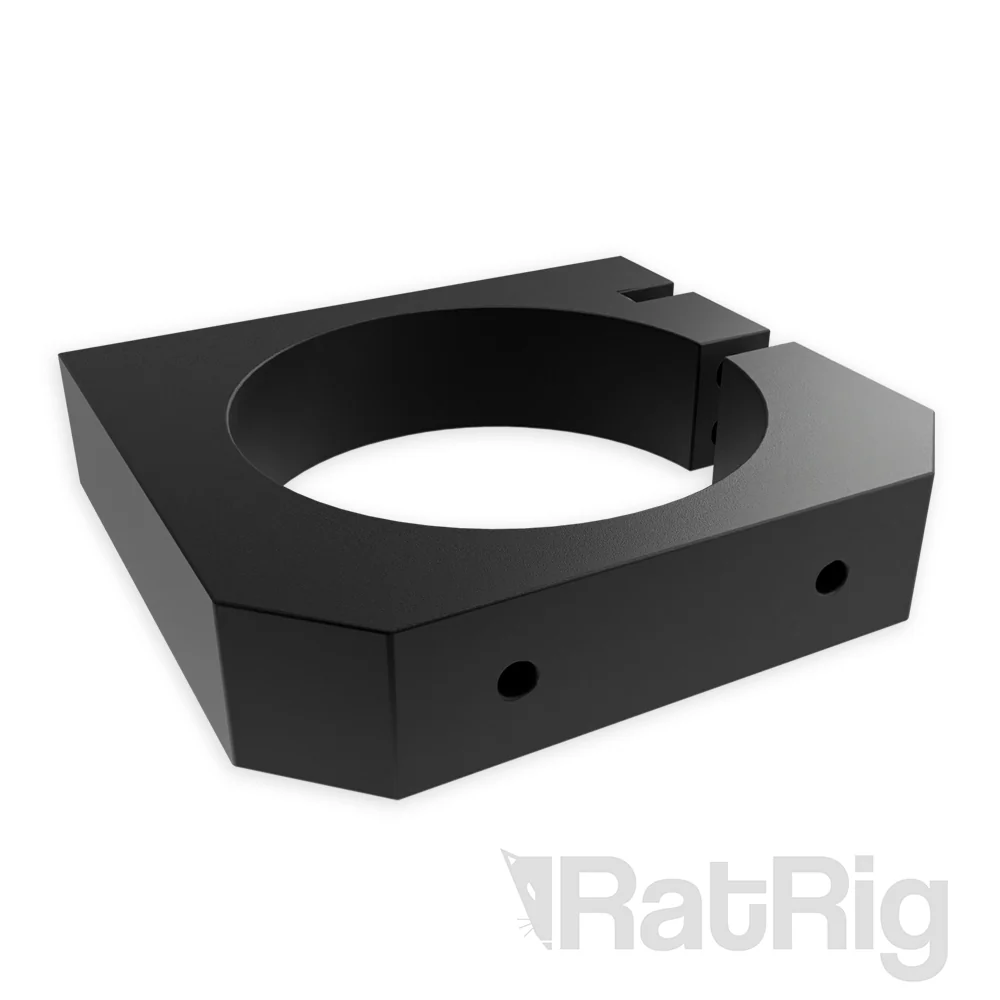

Rat Rig Stronghold Spindle Mount Kit

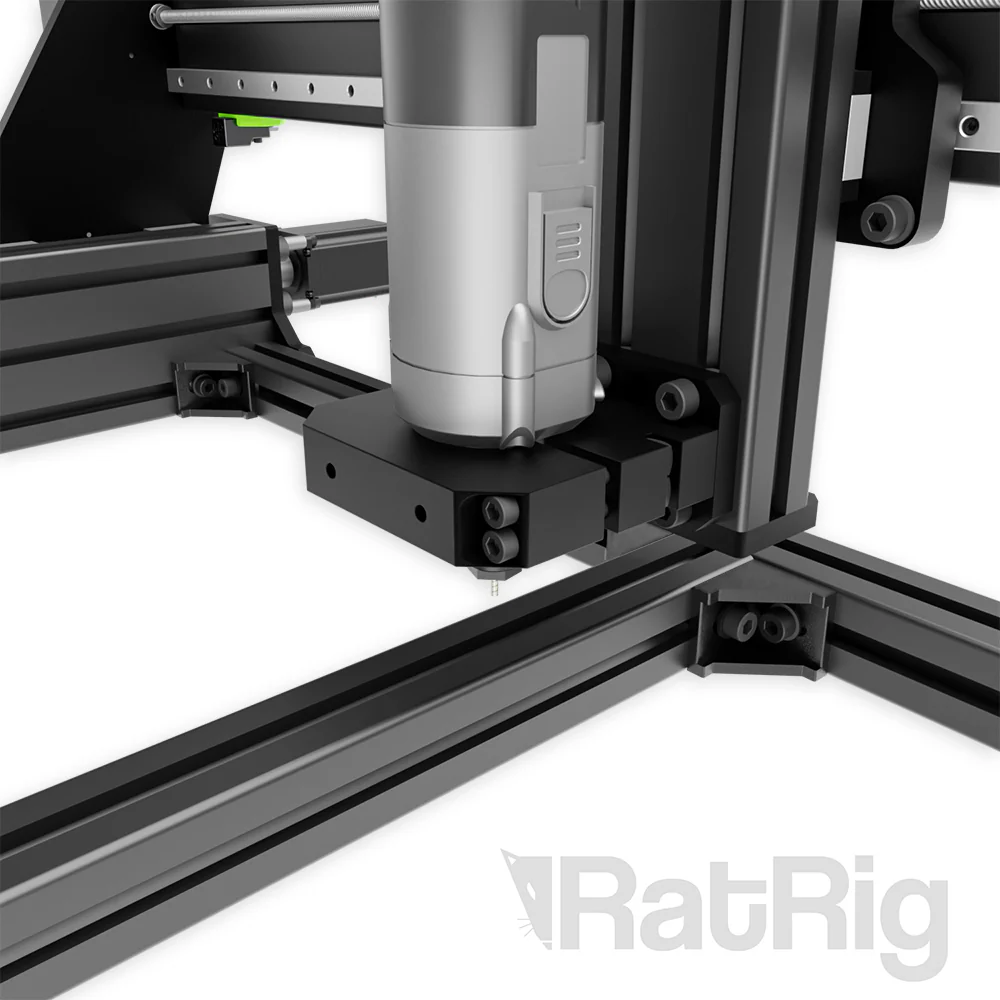

The Rat Rig Stronghold Spindle Mount Kit allows you to easily secure your router or spindle on your StrongHold CNC machine. This is a super strong, high quality, router / spindle mount, compatible with the T-SLOT 40120, it can be mounted directly on the T-Slot with the supplied screws and T-nuts, or with a compatible or custom plate it can be virtually mounted on any CNC machine.
The front plate has a design that allows for quick router/spindle changes, and can accommodate small size variations in the router/spindle mounting collar. It also features two threaded mounting holes in the front, to secure vacuum or extractor tubes, brushes, etc.
Note: These mounts are not compatible with the Spindle/Router LED Light Ring
-
Specifications:
- Dimensions: 110 x 100mm
- Inner collar dimensions available: 43mm, 65mm, 80mm
- Thickness: 24mm
- Material: Aluminium
- Finish: Anodized
- Colour: Black
-
Bill of Materials:
- Click here!
Original: $36.76
-70%$36.76
$11.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Rat Rig Stronghold Spindle Mount Kit allows you to easily secure your router or spindle on your StrongHold CNC machine. This is a super strong, high quality, router / spindle mount, compatible with the T-SLOT 40120, it can be mounted directly on the T-Slot with the supplied screws and T-nuts, or with a compatible or custom plate it can be virtually mounted on any CNC machine.
The front plate has a design that allows for quick router/spindle changes, and can accommodate small size variations in the router/spindle mounting collar. It also features two threaded mounting holes in the front, to secure vacuum or extractor tubes, brushes, etc.
Note: These mounts are not compatible with the Spindle/Router LED Light Ring
-
Specifications:
- Dimensions: 110 x 100mm
- Inner collar dimensions available: 43mm, 65mm, 80mm
- Thickness: 24mm
- Material: Aluminium
- Finish: Anodized
- Colour: Black
-
Bill of Materials:
- Click here!
