Solid V Wheel Kit

The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to it's solid nature.

This wheel style was produced for two reasons.
- First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.  - Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.

Each wheel is carefully milled for consistent high precision and tolerance.

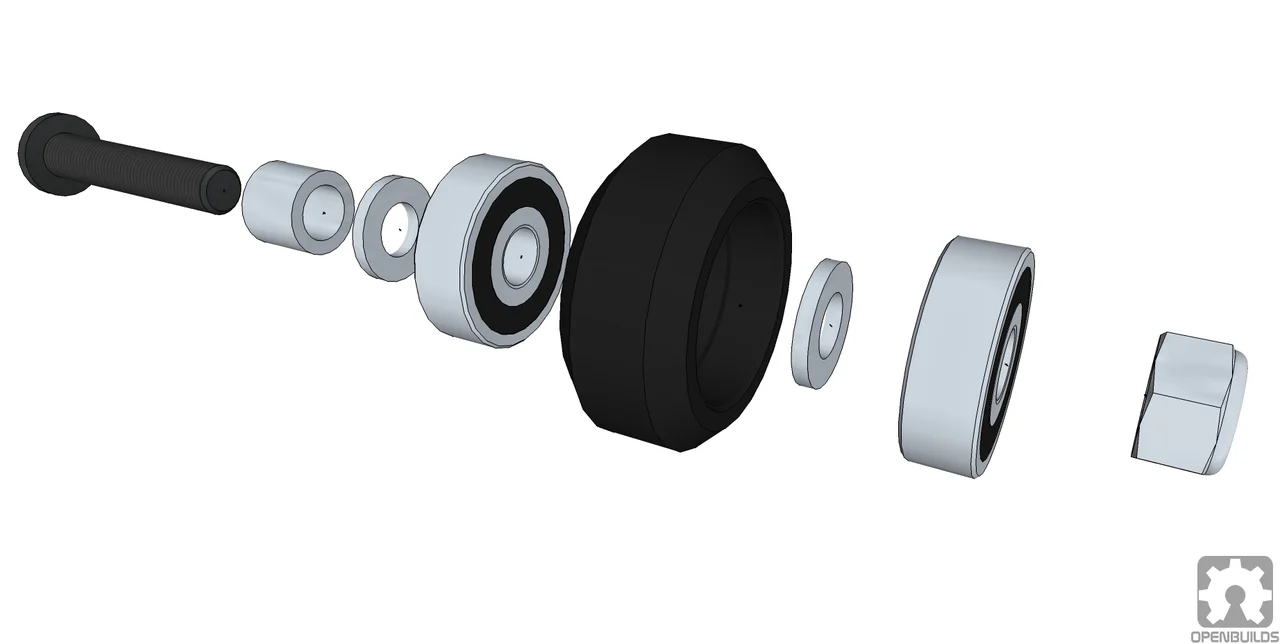

Each Wheel Kit Includes:

• (1) OpenBuilds Solid V Wheel
• (2) Ball Bearings - 625 2RS
• (2) 5mm Precision Shim
• (1) Lock Nut with Nylon Insert

Also, be sure to grab the screws and spacers of your choice here:

• Low Profile Screw (25mm for use with 1/8" Plate and 30mm for 1/4" Plates)
• Aluminum Spacers (choose between 6mm and 1/4")
• Eccentric Spacers (choose between 6mm and 1/4")

Note: Usually for a standard gantry plate you will need two Eccentric Spacers as well as two Aluminum Spacers

Part Details

• - Material - Delrin (black)
• - Dimensions 23.90 OD x 16 ID  x 10.23 'thick'
• - Rockwell Hardness M80
• - Compressive Strengh 63Mpa

Example Build: This is the Solid V Wheel we are using on the OpenBuilds OX cnc router Build
