Timing Pulley - 3GT (2GT-3M) - 20 Tooth - 9mm Belt - 1/4" Bore

3GT (2GT-3M) Timing Pulley - 20 Tooth - 9mm Belt - 1/4" Bore

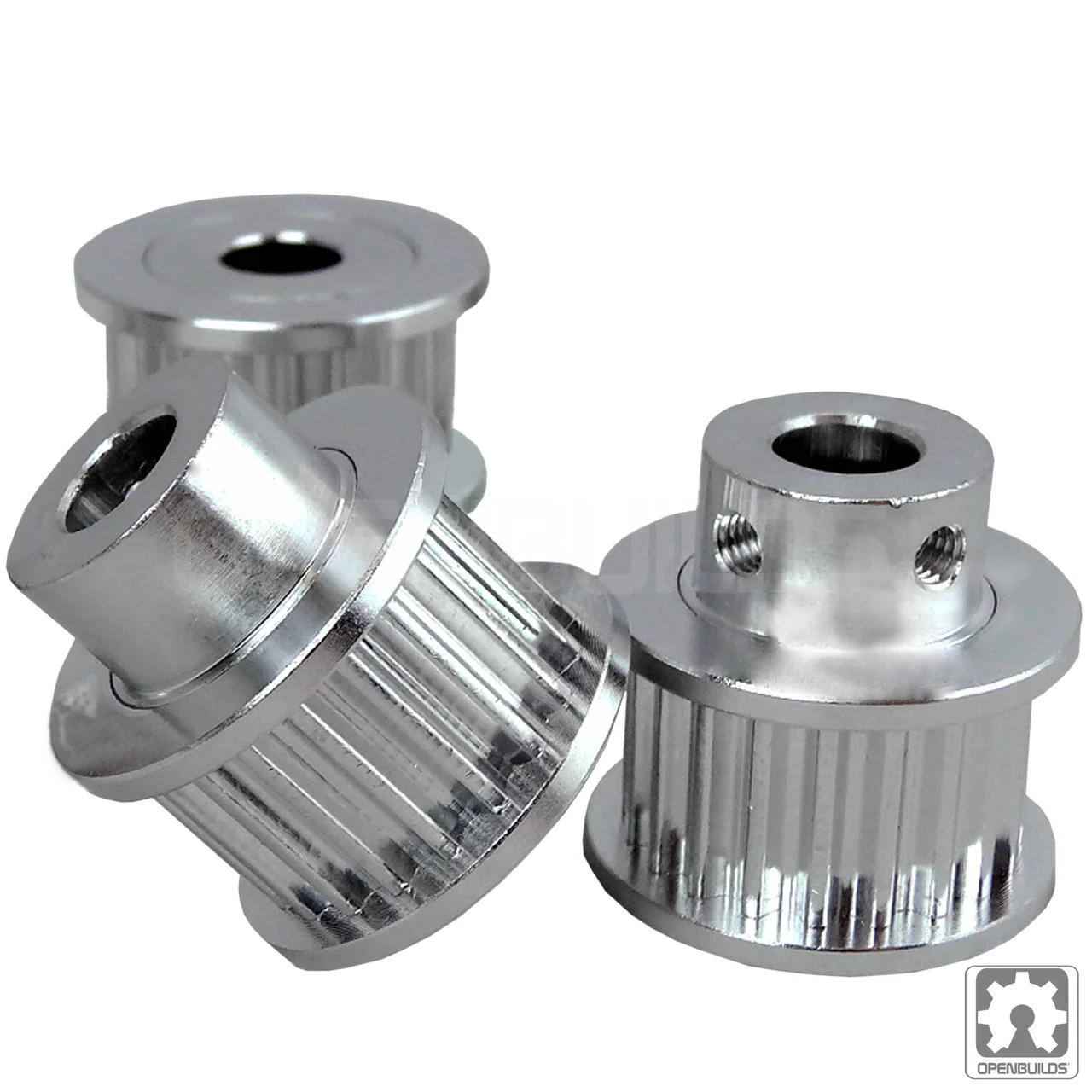

This is a high quality aluminum timing pulley.

It has more aggressive teeth and can be used in higher torque applications.

This pulley has a 6.35mm (1/4") bore size which fits the Nema 23 or Nema 23 High Torque Stepper Motors

• - Pitch: 3mm
• - No. Of Grooves: 20
• - Material: Aluminum
• - Belt Width: .354 (9mm)
• - Bore Size: 0.25" (6.35mm)
• - Flange: 2 Flanges / With Hub
• - Pitch Diameter: 0.752"
• - Outside Diameter: 0.722"
• - Overall Length: 0.813"
• - Hub Diameter: 0.5"
• - Set Screws included (M3 - 5mm - 1.5mm)

Need to hide the Stepper Motor or move it out of the way on your design?

View - Download 3D MODEL

Left mouse to rotate - click 3Dwarehouse to Download



Models available in SketchUp and SolidWorks and other CAD formats
